Common Engineering Design Risks in Plant Expansion Projects
By Ninya Claassen

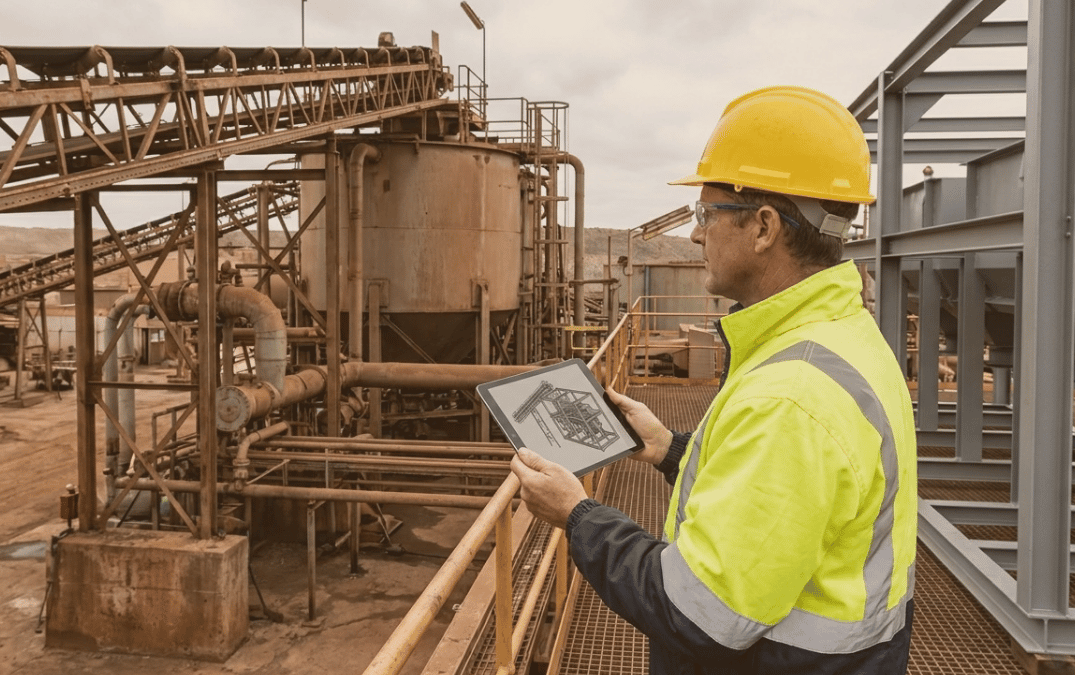

Expanding an existing mining, mineral processing or industrial plant means tying new equipment, piping, structures and controls into infrastructure that may have been operating for decades. The risk isn’t usually whether the new equipment works on its own — it’s whether it works once it’s connected to everything that’s already there.
CSS Engineering reduces these risks by combining site verification, 3D scanning, engineering design, structural and fabrication expertise and practical field experience before fabrication and installation begin.
1. Brownfield Integration and Site Data Risks
Inaccurate as-built drawings. Older facilities accumulate modifications, equipment swaps and piping changes that never make it back onto the original drawings. Designing an expansion against legacy drawings — rather than verified current conditions — is one of the most common sources of physical clashes once steelwork or equipment arrives on site. 3D scanning and site measurement close this gap by capturing what’s actually there, which is also why accurate plant design data matters before fabrication.
Poorly planned tie-in points. Every expansion has to connect to existing piping, conveyors, structural steel or electrical supplies somewhere. A tie-in planned too late can mean extra shutdown time or unplanned loads on equipment that wasn’t designed to carry them. Before the design is finalised, it’s worth establishing exactly where each connection occurs, what existing equipment it affects, what has to happen during the shutdown itself, and how much of it can be fabricated and tested beforehand.
Restricted space and maintenance access. Expansion space is often wherever it can be found, which creates pressure to position equipment without checking what it will later take to maintain. Removal routes for motors and gearboxes, crane access, walkways and inspection points need to be part of the layout decision, not an afterthought — see why poor plant layout increases maintenance costs and designing safer access around crushers, screens and conveyors.
2. Process and Utility Capacity Risks
Utility starvation. Electrical power, compressed air, process water, cooling and drainage are often already running close to their design limits on an established plant. New equipment can look mechanically straightforward while the infrastructure feeding it simply can’t carry the extra load reliably.
Hydraulic bottlenecks. Routing a new process stream into existing relief headers, drainage or discharge piping can create backpressure that wasn’t accounted for in the original sizing. This is easy to miss because it doesn’t show up as a mechanical clash — it shows up as a flow or pressure problem once the system is running. Reviewing pipe sizing, flow rates and duty ranges against the new load belongs in the same design pass as the process piping itself, not after.
Process bottlenecks and flow disruption. Increasing one stage’s capacity doesn’t increase the whole plant’s capacity — it just moves the constraint. A larger crusher, screen or conveyor can expose a limit somewhere downstream in transfer points, surge capacity or product handling. The fix is modelling the full process route rather than the upgraded equipment in isolation — the same logic behind how plant design reduces bottlenecks in mineral processing.
3. Electrical, Control and Automation Risks
Control system incompatibility. Introducing modern DCS or PLC equipment into an older automation environment can create real communication and data-transfer problems between new and legacy systems — this is usually a specialist controls-integration scope, run alongside the mechanical and electrical design rather than instead of it.
Electrical capacity and grid overload. New motors and drives can exceed what existing substations, transformers and motor control centres were sized for. CSS Engineering’s electrical motor and AC/DC rewinding and drive systems work gives a practical link between the mechanical duty of new equipment and the electrical infrastructure that has to run it — but the mechanical design can be flawless and the plant still can’t operate the new equipment reliably if this step is skipped.
Instrument loop and safety-system conflicts. Migrating safety-instrumented systems or adding interlocks during a live shutdown carries real risk of accidental trips, both during hot-cut work and at commissioning. This is specialist process-safety and controls territory, but it needs to be planned against the same sequence as the rest of the installation — which is where CSS Engineering’s installation and commissioning approach connects in, defining how and when each system is energised and tested.
4. Structural and Geotechnical Risks
Soil and foundation overload. New reactors, tanks or pipe racks placed near existing structures can exceed soil bearing capacity or interact with nearby foundations in ways that cause differential settling over time. Specialist geotechnical input is often needed to confirm this before anything is built.
Structural integrity and overloading. Existing pipe racks, platforms and support towers are not automatically capable of carrying new lines, trays or equipment loads. Structural engineering and fabrication review needs to run alongside equipment layout, not after it’s already fixed on paper.
Vibration propagation. Large rotating equipment — compressors, mills, pumps — can transmit vibration through structures and foundations to nearby instruments or older steelwork that was never isolated for it. CSS Engineering’s rotating equipment vibration analysis and dynamic balancing capability is built specifically around catching this before it becomes a reliability problem.
5. Safety, HAZOP and Constructability Risks
Flawed HAZOP assumptions. A Hazard and Operability study that treats the expansion and the existing plant as two separate systems, rather than one interactive whole, can miss real interaction effects between old and new equipment. Running HAZOP as a specialist process-safety exercise alongside the engineering design — not as a late-stage checklist — is what catches these.
Stick-built vs. modular design. Choosing a fully stick-built installation in a congested, live operating area usually means more on-site hot work and a longer shutdown window than a modular approach would. Pre-fabricating sections off-site — supported by accurate engineering design and 3D scanning of the space they need to fit into — shifts that work to where it’s safer and faster to do.
Staging and shutdown sequencing. A design can be technically correct and still create unnecessary downtime if the temporary works, tie-ins and installation sequence weren’t planned alongside it. Measuring, engineering and fabricating as much as possible before the shutdown starts is what actually protects the shutdown window — covered in more detail in how to reduce downtime during mining plant upgrades and how fabrication drawings help prevent site installation delays.
How CSS Engineering Reduces Plant Expansion Risk
Successful plant expansion depends on understanding the relationship between the existing plant, the proposed equipment, and how it will actually be fabricated, installed and maintained — not just how it looks in a layout drawing. CSS Engineering’s integrated capability spans engineering design and plant layout, 3D scanning and as-built verification, structural engineering and fabrication, electrical motor and drive services, rotating equipment vibration analysis, process piping, and installation and commissioning support — which means a design can be checked against how it will be built and run, not only how it looks on paper.
Engineering Risk Should Be Reduced Before Fabrication
A clash identified during design can usually be corrected in the model. The same clash discovered during a shutdown can mean cutting, re-fabrication, extra labour and extended downtime. The objective for any plant owner planning an expansion is to identify these risks as early as practical — accurate plant data, multidisciplinary design review, capacity checks and constructability planning all make for a more controlled project than solving problems on site.
For a closer look at the engineering checks this covers in practice, see engineering design checks before mining plant expansion.
Frequently Asked Questions
What are the main engineering risks in a plant expansion?
The main risks include inaccurate existing-plant information, poorly planned tie-ins, insufficient utility and process capacity, structural and geotechnical limitations, electrical and control incompatibility, restricted maintenance access, and poor construction or shutdown sequencing.
Why is 3D scanning useful for brownfield plant expansion?
It captures accurate information about existing equipment, structures and plant geometry, which helps engineers identify clashes and dimensional problems before new components are fabricated or installed.
Should existing structures be checked before installing new equipment?
Yes. New equipment can introduce additional static, dynamic and vibration loads, so existing structural steel and foundations should be assessed before extra load is added.
How can engineering design reduce shutdown time during plant expansion?
Accurate measurements, coordinated layouts, planned tie-in points and detailed fabrication drawings let more of the work happen before the shutdown, which reduces on-site modification and makes installation more predictable.
Why does constructability matter in plant expansion projects?
It considers how equipment and structures will actually be transported, lifted, positioned, connected and commissioned within a live plant. Addressing this during design, rather than on site, reduces installation delays, safety risk and unplanned changes.
