By Ninya Claassen
Shutdown planning is usually treated as a scheduling discipline — but a maintenance team can only plan as well as the plant lets them. If equipment can’t be reached, isolated or removed without a fight, no amount of scheduling software fixes that on the day. The plant layout, access routes and isolation points decided at the design stage are what determine whether a shutdown is a controlled, predictable process or a reactive scramble.
CSS Engineering supports mining operations by reviewing plant layout, access and isolation requirements against these shutdown-planning disciplines — so the engineering work happens before the outage, not during it.
1. A Frozen Scope Needs Accurate Engineering Data
Locking the shutdown scope weeks in advance — and refusing “while we’re at it” additions once it’s set — is one of the most consistently cited shutdown-planning disciplines, because a late addition is work that hasn’t been engineered, resourced or sequenced. But a scope can only be frozen with confidence if it’s based on what’s actually on site. If the engineering team is still unsure whether a drawing matches reality, scope keeps shifting because nobody can commit to it.
This is where getting the design basis right earlier pays off. We’ve covered the role of 3D scanning in mining plant design accuracy and why accurate plant data matters before fabrication in more depth elsewhere — the short version for shutdown planning is that verified as-built data, captured before the outage, is what lets a scope freeze actually hold.
2. Move Work Out of the Shutdown Window
Every task completed while the plant is still running is an hour recovered from the outage. Structural steel, replacement piping, platforms and pre-assembled components can all be fabricated and staged in advance, so the shutdown itself becomes installation and tie-ins rather than measuring and fitting from scratch.
We’ve written specifically about how this preparation reduces delays once work reaches site — see how fabrication drawings help prevent site installation delays and how to reduce downtime during mining plant upgrades, which covers phased cutovers and modular assembly for larger upgrade projects in detail.
3. Protect the Critical Path With Detailed Work Packages
The critical path is the sequence of activities that actually determines when the plant restarts — and it’s frequently delayed by something that looks like a maintenance problem but is really a design problem. A bearing replacement estimated correctly on paper can still run long if the lifting access is wrong, a platform blocks the removal path, or nearby piping was never designed with that component’s removal in mind.
Two design inputs matter most here, and they’re often under-planned:

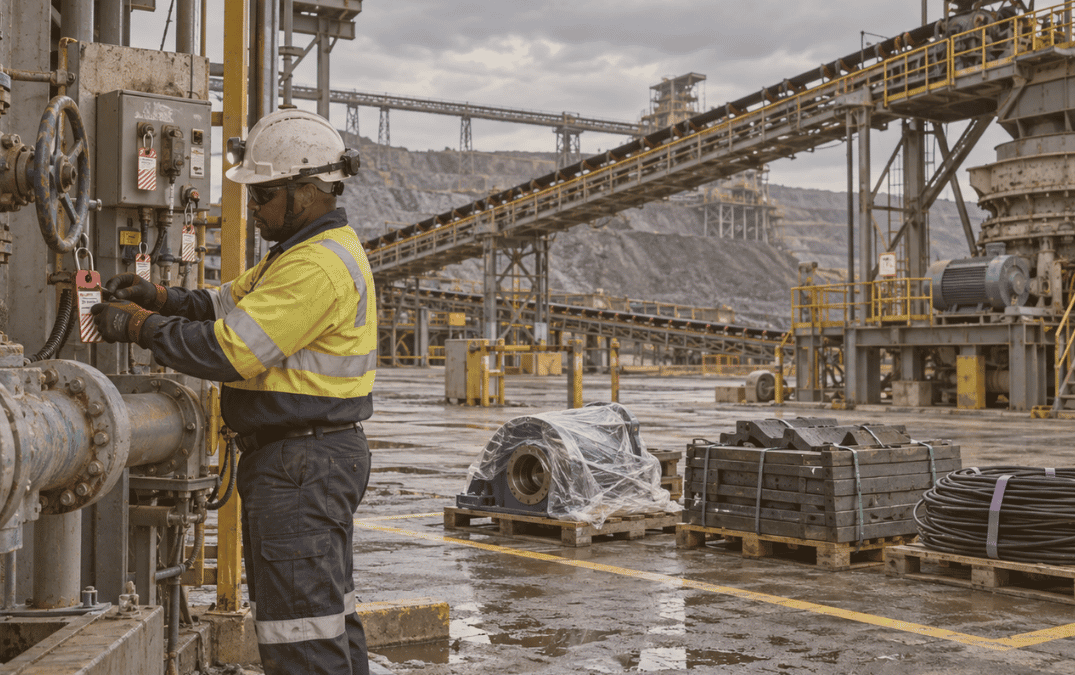

- Isolation points. Maintenance can’t begin until equipment and energy sources are correctly isolated. Electrical isolation, process valves, hydraulic and pneumatic systems and stored-energy hazards all need to be reachable and operable without extra steps — a poorly positioned isolation point adds time to every single shutdown it’s used in, not just the first one.
- Work package detail. A package that gives contractors exact dimensions, structural details, lifting requirements and sequencing lets them execute without making decisions on site. A package that says “replace structure” doesn’t. The difference shows up directly in how accurately labour and duration can be estimated.
For the maintenance-access side of this — removal routes, platform positioning, crane reach — see why poor plant layout increases maintenance costs and designing safer access around crushers, screens and conveyors.
4. Shorten Repetitive Tasks With Performance Analysis
Every shutdown contains tasks that repeat turnaround after turnaround — bearing changes, liner replacements, motor swaps — and these are exactly where small design improvements compound. SMED (Single-Minute Exchange of Dies) and time-and-motion analysis, borrowed from manufacturing changeover theory, apply the same logic to a mining shutdown: film or time a recurring task, separate the steps that genuinely require the plant to be stopped from the steps that could be done in parallel or beforehand, then redesign around that split.
In a plant context, this usually surfaces as an engineering fix rather than a procedural one — a quick-release guard instead of a bolted one, a standardised lifting point instead of an improvised sling, a modular wear-liner that swaps in one piece instead of several. None of this requires a full redesign; it requires treating the same bottleneck recurring across several shutdowns as a design signal rather than accepting it as the cost of doing maintenance.
5. Capture the Data After Every Shutdown
Shutdown planning doesn’t end when the plant restarts. The execution itself is the most reliable source of engineering information available, and it’s often the most underused.
A disciplined post-shutdown review, done while the crew’s memory of what actually happened is still fresh, should compare:
- Estimated versus actual duration for each work package
- Schedule compliance against target (a commonly cited benchmark is above 95%)
- Where access, lifting or isolation issues caused delays
- Late scope additions and why they were needed
- Tasks that are consistently slower than planned, turnaround after turnaround
A single modification identified this way — moving an isolation point, widening a removal path — can shave hours off every future shutdown that touches that equipment. Treated this way, shutdown planning becomes a feedback loop into plant design rather than a one-off scheduling exercise repeated from zero each time.
Where CSS Engineering Fits In
CSS Engineering supports the engineering work that sits behind all five of these disciplines: reviewing plant layout and access against shutdown requirements, verifying existing conditions with 3D scanning and engineering design, preparing fabrication information ahead of the outage, and identifying the design changes — isolation points, access routes, modular components — that turn a recurring bottleneck into a solved one. For brownfield modifications specifically, see engineering design checks before mining plant expansion and common engineering design risks in plant expansion projects.
The plants that run the smoothest shutdowns aren’t the ones with the best scheduling software — they’re the ones where the physical design stopped working against the plan years before the outage began.
Frequently Asked Questions
How does plant design improve mining shutdown planning?
Plant design improves shutdown planning by providing practical maintenance access, reachable isolation points, suitable lifting and removal routes, and engineering data accurate enough to freeze the shutdown scope with confidence.
What is SMED and how does it apply to mining shutdowns?
SMED (Single-Minute Exchange of Dies) is a method, originally from manufacturing, of separating a task’s steps into those that must happen while equipment is stopped and those that can happen in parallel or beforehand. Applied to recurring shutdown tasks like bearing or liner changes, it often points to a specific design fix — quicker access, a standardised lifting point — rather than just a scheduling change.
Why are isolation points important for shutdown planning?
Maintenance work can’t begin until equipment and energy sources are correctly isolated. If isolation points are hard to reach or operate, that delay repeats on every shutdown that uses them, not just the first one.
What should a post-shutdown review cover?
It should compare estimated versus actual task durations, track overall schedule compliance, identify where access or isolation issues caused delays, and flag recurring bottlenecks so they can be fed back into plant design before the next turnaround.
Can CSS Engineering support shutdown-focused plant design?
Yes — through plant layout and access review, 3D scanning and as-built verification, fabrication drawings prepared ahead of the outage, and identifying design changes that reduce recurring shutdown bottlenecks.
