3D Scanning Ball Mill for Relocation

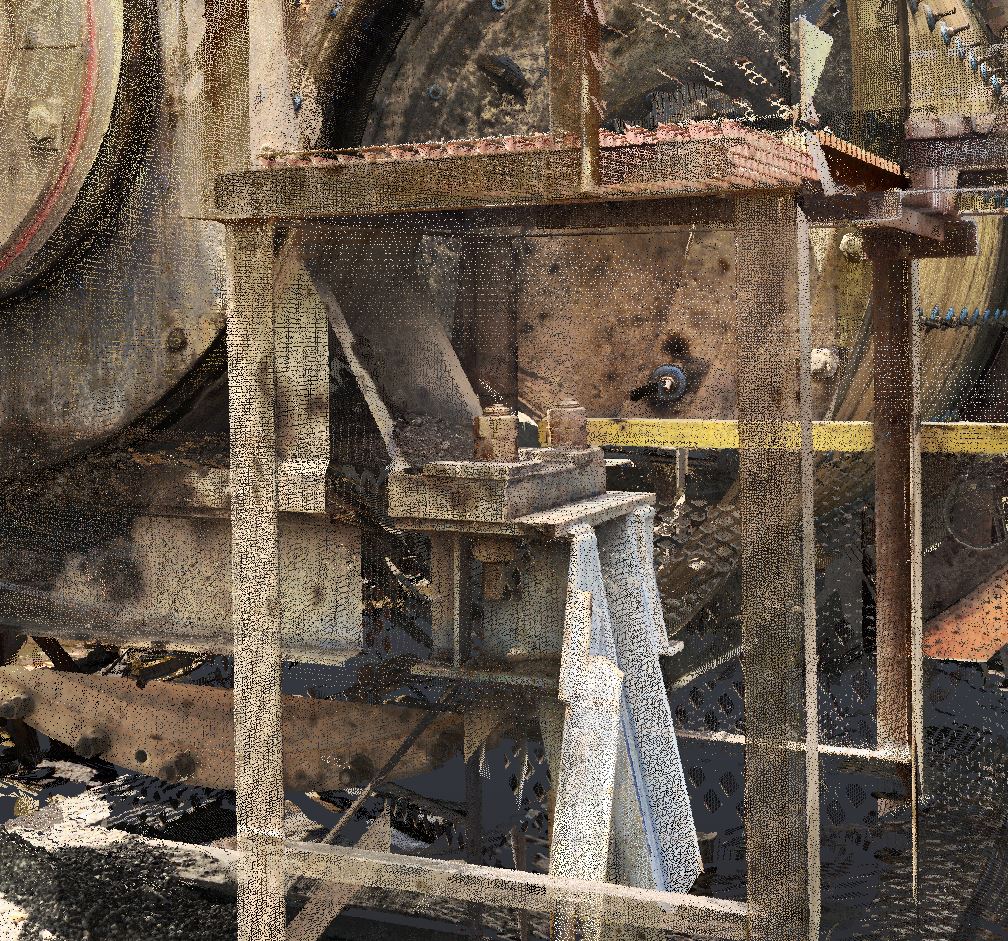

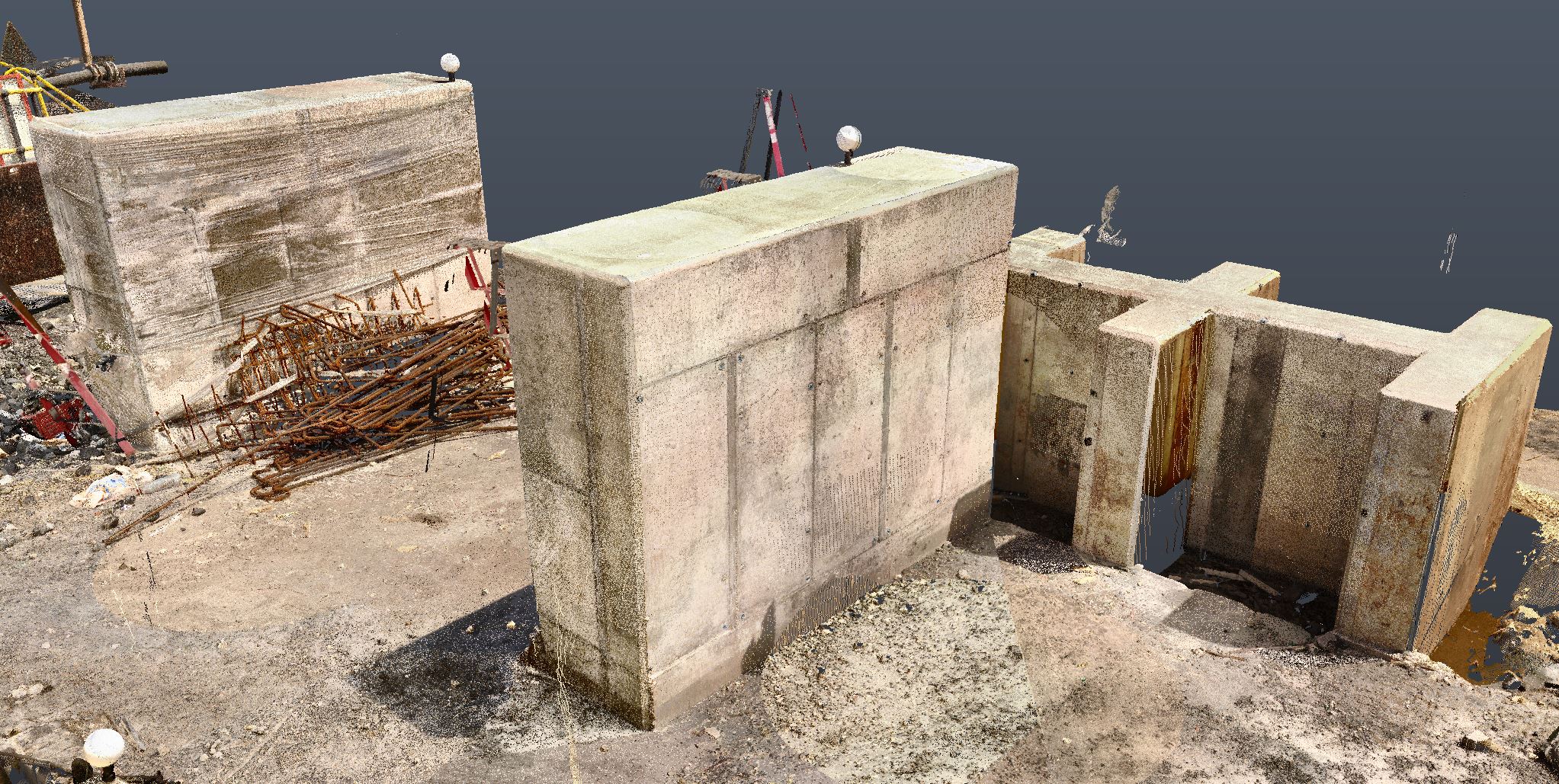

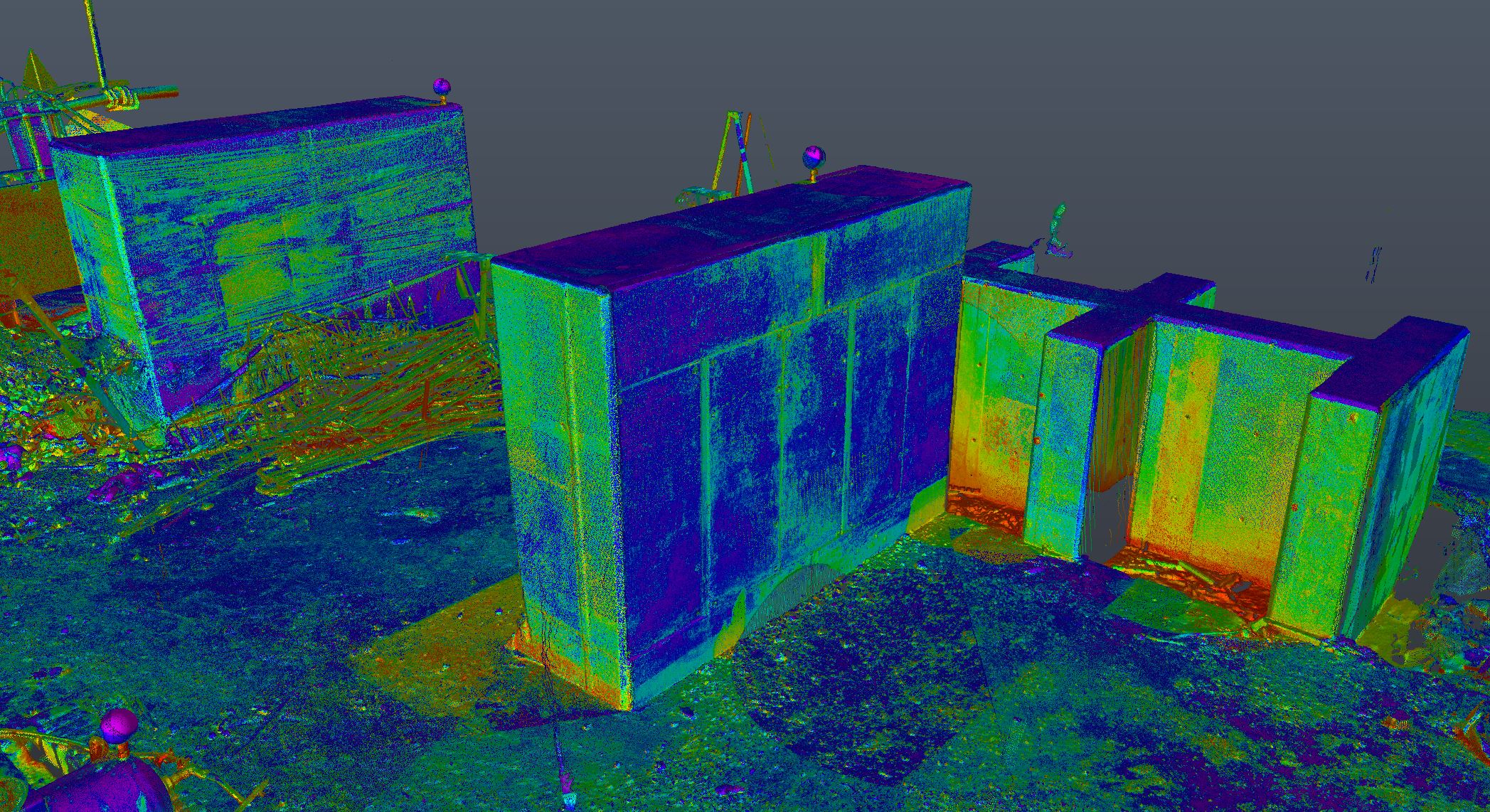

• Holding down points on existing plinths identified and plotted onto new plinths.
• Mill retention angle from supply to discharge identified.
• Helix Angle & Pressure Angle on Pinion Gear identified.
• Angle relative to Pinion Gear to Girth Gear identified.
• Height from Mill Bearings to Drive Unit identified.
• All data formulated into drawings for relocation project.
DRAWINGS

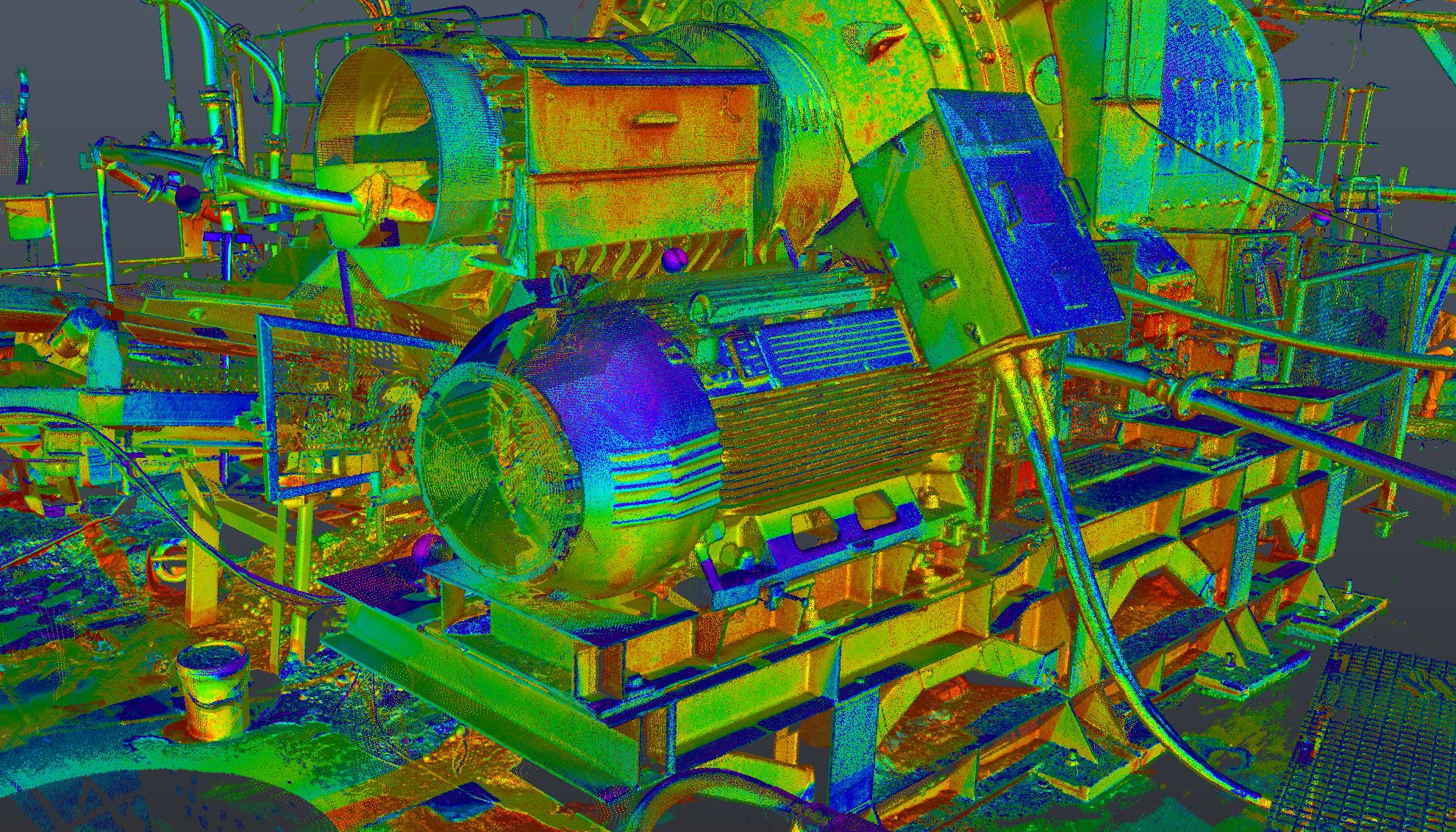

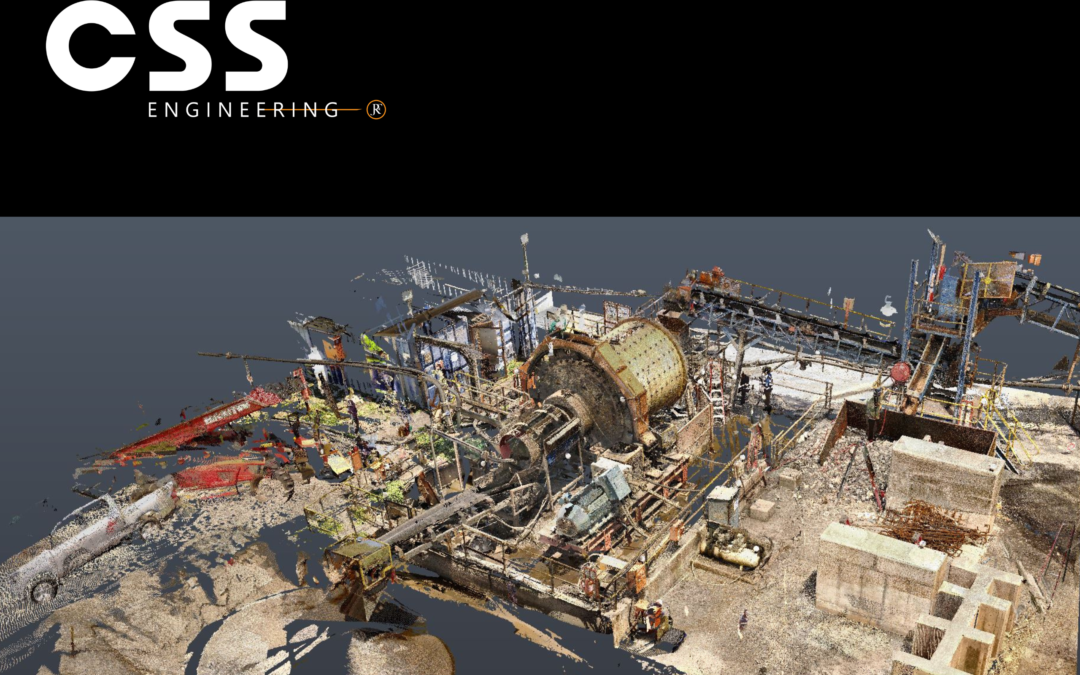

SCANNING DATA
